Recent advances in the understanding of CFS framing and ongoing research related to the design of seismic force-resisting systems SFRS are expected to expand the use of cold-formed steel framing into more complex robust structural systems. Lateral wind loads are transferred to the wind force resisting system through roof and floor diaphragms. Section 2305 Wood General Design Requirements for Lateral Force-Resisting Systems Structures using wood-frame shear walls or wood-frame diaphragms to resist wind seismic or other lateral loads shall be designed and constructed. WO9846839 PCTUS9807609 8 The rigid structural panel may be. The lateral force resisting system may be used in wood frame as well as metal frame buildings. Selecting reduction factors for different seismic systems in association with their behavior under seismic forces is not clearly stated in ACI 318-14. Short review of moment resisting frame braced frame and shear wall against lateral force like wind and seismic load.

The lateral force resisting system may be used in wood frame as well as metal frame buildings.

The lateral force resisting system may be used in wood frame as well as metal frame buildings. The diaphragm essentially acts as a deep beam spanning between vertical lateral framing members or bracing bays. Diaphragms A structural diaphragm is a horizontal or inclined structural element that distributes lateral loads to the vertical portion of the lateral load resisting system. Efficient lateral systems decreases the lateral deformations caused by the seismic forces in the buildings. During the earthquake substantial. The structure shall include complete lateral- and vertical-force-resisting systems capable of providing adequate strength stiffness and energy dissipation capacity to withstand the design ground motions within the prescribed limits of deformation and strength demand.

15 Lateral Force Resisting Systems Download Scientific Diagram

Lateral force resisting system. When buildings become taller and taller horizontal loads applied to them increases. Selecting reduction factors for different seismic systems in association with their behavior under seismic forces is not clearly stated in ACI 318-14. The lateral force resisting system may be used in wood frame as well as metal frame buildings.

WO9846839 PCTUS9807609 8 The rigid structural panel may be. This type of LFRS is made up of columns and beams that resist lateral loads by having the members of the structure flex under. The lateral force resisting system may be used in wood frame as well as metal frame buildings.

In light-frame construction the lateral force-resisting system LFRS comprises shear walls diaphragms and their interconnections to form a whole-building system that may behave differently than the sum of its individual parts. The Lateral Force Resisting System LFRS is Comprised of Horizontal and Vertical Elements Horizontal Element Diaphragm Lateral wind or earthquake load Vertical Element Common vertical elements are shown on the following slides. Shear walls and diaphragms are themselves subassemblies of many parts and connections.

Engineering teams will want to design a lateral force resisting system that is both effective and inexpensive. Lateral wind loads are transferred to the wind force resisting system through roof and floor diaphragms. The rigid structural panel may be compatible with standard North American framing dimensions that is framing members having 24 26 28 cross section dimensions.

It drags parallel wind pressure from the roof and walls into the lateral force resisting system Figure 8. And complete load-bearing structures including lateral force-resisting systems LFRS. To make the structure earthquake resistant the provision of lateral force resisting system is essential.

Section 2305 Wood General Design Requirements for Lateral Force-Resisting Systems Structures using wood-frame shear walls or wood-frame diaphragms to resist wind seismic or other lateral loads shall be designed and constructed. Lateral Force Resisting System The lateral force resisting system LFRS of a conventionally framed structure typically consists of the following components. The diaphragm essentially acts as a deep beam spanning between vertical lateral framing members or bracing bays.

Lateral load resistance of structure is provided by interior structural system or exterior structural system. The tall building needs a lateral load resisting system to maintain the structure stable when lateral loads are applied to them.

Types Of Lateral Force Resisting Systems In Commercial Buildings Certified Commercial Property Inspectors Association

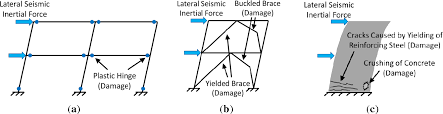

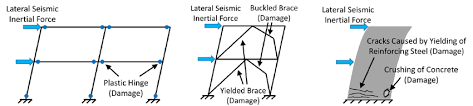

Conventional Seismic Lateral Force Resisting Systems A Steel Download Scientific Diagram

Types Of Lateral Force Resisting Systems In Commercial Buildings Certified Commercial Property Inspectors Association

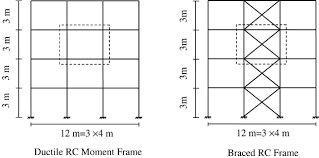

Lateral Load Resisting Systems Download Scientific Diagram

Types Of Lateral Force Resisting Systems In Commercial Buildings Certified Commercial Property Inspectors Association

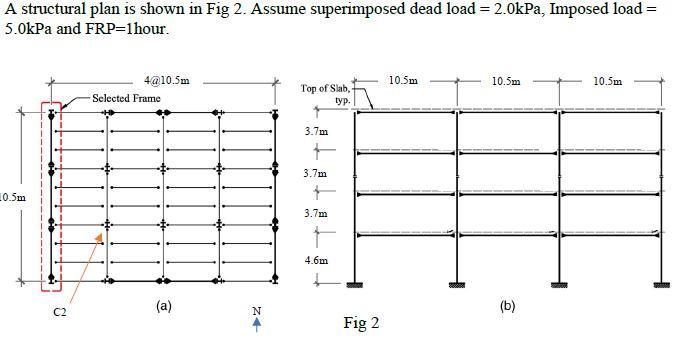

Plan View And Elevation Of Main Lateral Force Resisting System Download Scientific Diagram

Lateral Load Resisting Systems Steel And Concrete Design Youtube

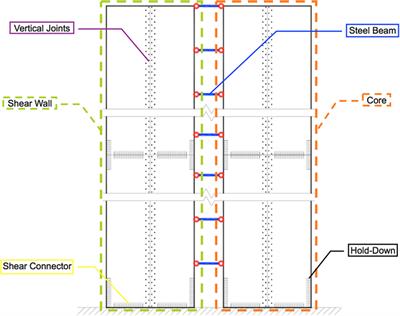

Frontiers Lateral Load Resisting System Using Mass Timber Panel For High Rise Buildings Built Environment

Lateral Resisting Systems Sturdy Structural

Lateral Systems American Institute Of Steel Construction

Lateral Load Resisting Systems

Swing Story Lateral Force Resisting System Connected With Dampers Novel Seismic Vibration Control System For Building Structures Journal Of Engineering Mechanics Vol 144 No 2

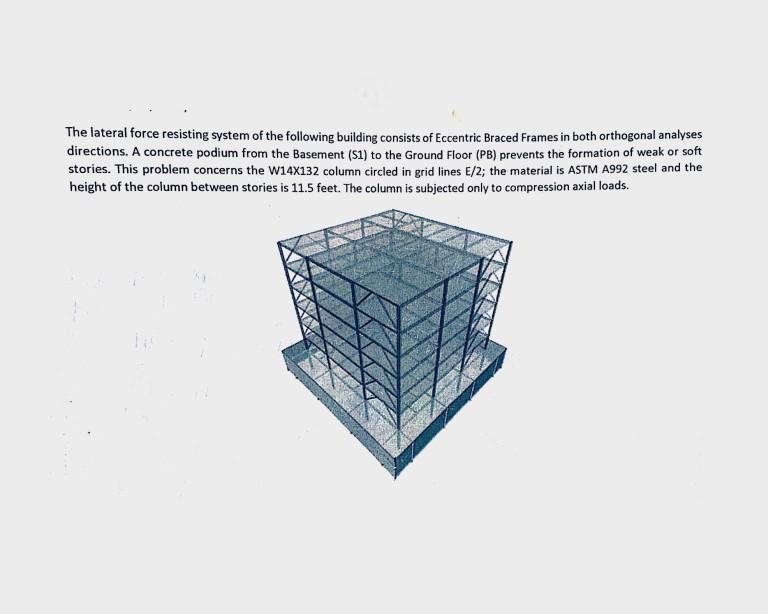

Lateral Forceresisting Systems Resisting System

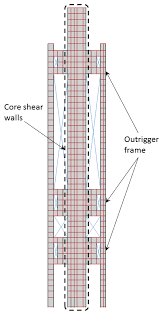

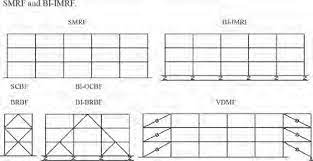

Configurations Of Different Lateral Load Resisting Systems Download Scientific Diagram

Lateral Systems American Institute Of Steel Construction

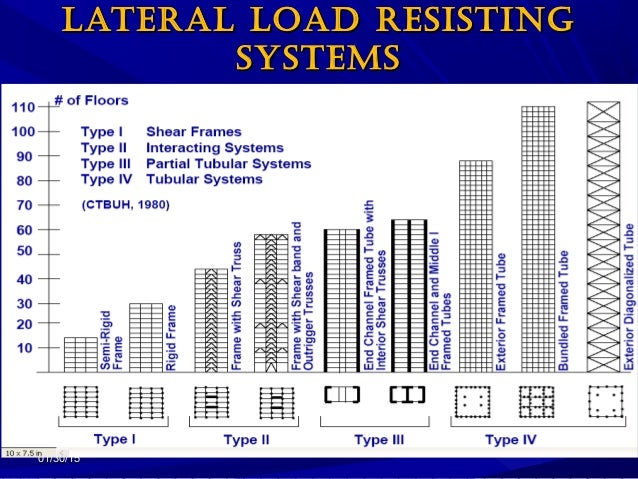

H Igh Rise 02 Lateral Load Systems 01
